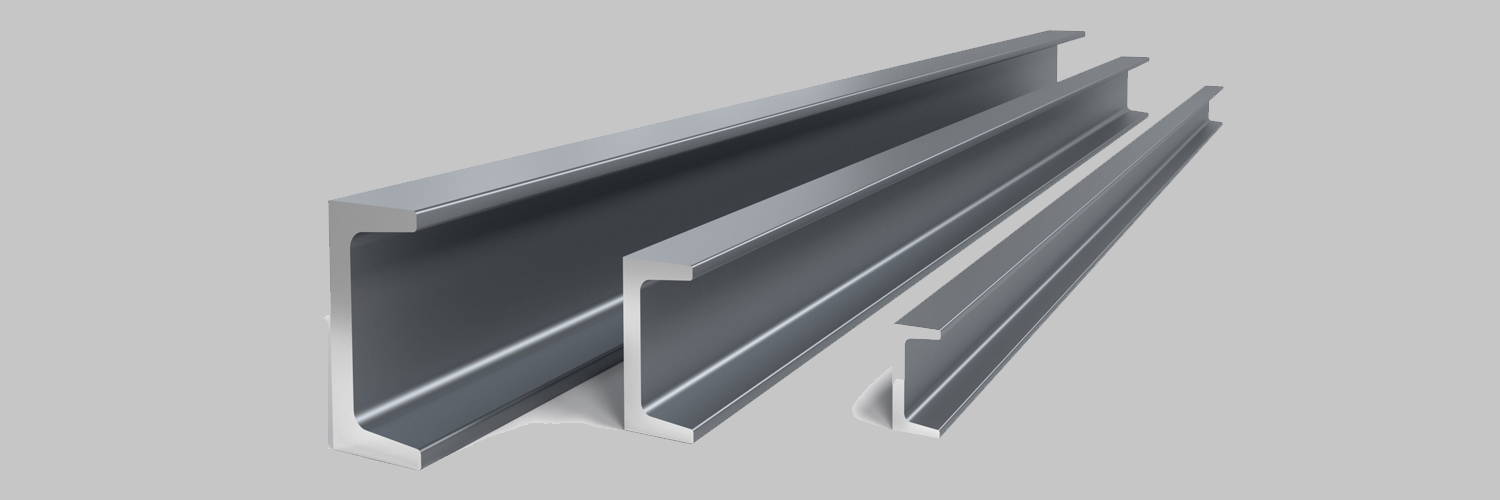

One of the hot rolled structural shapes which KL Sons Pvt Ltd offer is the India Standard Medium Weight Channels (ISMC) which are available in a wide range of sizes and thicknesses. The shape provides superior structural support, making it an idealproduct for frames and braces used for machinery, enclosure, vehicle, building and structural support applications.
Channel | Mass M(kg/Mtr) | D (mm) | B (mm) | Flange | T (mm) | t (mm) |
MC-200X75 | 22.300 | 200 | 75 | 96 | 7.5 | 11.4 |
MC-250X80 | 30.600 | 250 | 82 | 96 | 7.2 | 14.1 |
MC-250X82 | 34.200 | 250 | 82 | 96 | 9 | 14.1 |
MC-300X90 | 36.300 | 300 | 90 | 96 | 7.8 | 13.6 |
MC-400X100 | 50.100 | 400 | 100 | 96 | 8.8 | 15.3 |
