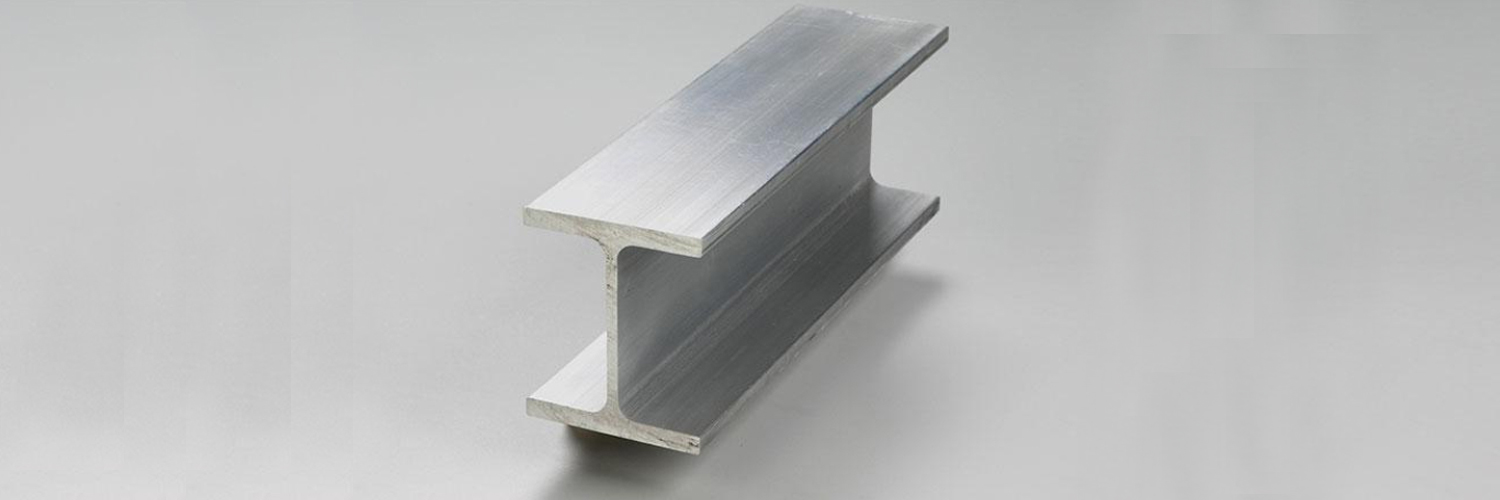

We manufacture ASTM W6, W8 Beams in various sizes. We also provide customized fabrication and galvanizing
solution as per the need of client’s requirements.
W6 BEAM Sizes as per ASTM Standards
| BEAM TYPE |
DEPTH(MM) |
WEB THICKNESS |
FLANGE WIDTH (MM) |
FLANGE THICKNESS (MM) |
WEIGHT (KG/M) |
| W6 * 7 |
147.1 |
3.4 |
99.2 |
4.1 |
10.4 |
| W6 * 7.75 |
147.8 |
3.8 |
99.6 |
4.5 |
11.5 |
| W6 * 8.5 |
148.1 |
4.3 |
100.1 |
5.0 |
12.6 |
| W6 * 9 |
149.9 |
4.3 |
100.1 |
5.5 |
13.4 |
| W6 * 10.4 |
147.1 |
3.4 |
99.2 |
4.1 |
10.4 |
| W6 * 7 |
151.4 |
5.1 |
100.8 |
6.3 |
15.5 |
| W6 * 12 |
153.2 |
5.8 |
101.6 |
7.1 |
17.9 |
| W6 * 12.1 |
151.9 |
5.1 |
140.0 |
5.6 |
18.0 |
| W6 * 15 |
152.1 |
5.8 |
152.1 |
6.6 |
22.3 |
| W6 * 16 |
159.5 |
6.6 |
102.4 |
10.3 |
23.8 |
| W6 * 16 |
159.5 |
6.6 |
102.4 |
10.3 |
23.8 |
| W6 * 20 |
157.5 |
6.6 |
152.9 |
9.3 |
29.8 |
| W6 * 25 |
162.1 |
8.1 |
154.4 |
11.6 |
37.2 |
W8 BEAM Sizes as per ASTM Standards
| BEAM TYPE |
DEPTH(MM) |
WEB THICKNESS |
FLANGE WIDTH (MM) |
FLANGE THICKNESS (MM) |
WEIGHT (KG/M) |
| W8 * 10 |
200.4 |
4.3 |
100.1 |
5.2 |
14.9 |
| W8 * 12.5 |
206.0 |
4.3 |
133.0 |
5.5 |
18.6 |
| W8 * 13 |
202.9 |
5.8 |
101.6 |
6.5 |
19.3 |
| W8 * 15 |
206.0 |
6.2 |
102.1 |
8.0 |
22.3 |
| W8 * 15.3 |
203.0 |
4.9 |
152.0 |
6.3 |
22.8 |
| W8 * 18 |
206.8 |
5.8 |
133.4 |
8.4 |
26.8 |
| W8 * 19.6 |
201.0 |
5.5 |
165.0 |
8.0 |
29.2 |
| W8 * 21 |
210.3 |
6.4 |
133.9 |
10.2 |
31.3 |
| W8 * 24 |
201.4 |
6.2 |
165.0 |
10.2 |
35.7 |
| W8 * 28 |
204.7 |
7.2 |
166.0 |
11.8 |
41.7 |
